Logistics & Distribution Centers – For sorting parcels, packages, and express shipments.
E-commerce Warehouses – Enables high-speed order fulfillment by directing goods to appropriate packing zones.
Manufacturing Facilities – Sorts products by size, type, or quality during production.
Postal & Courier Services – Automates mail and parcel routing for faster processing.
Food & Pharmaceutical Industries – Handles boxed or packaged goods while maintaining gentle handling.
High Efficiency – Capable of processing thousands of items per hour with minimal manual intervention.
Flexibility – Adjustable wheel speed and direction allow sorting of various sizes and weights.
Space-Saving Design – Compact structure fits well in constrained warehouse layouts.
Low Maintenance – Robust mechanical design reduces downtime and operational costs.
Gentle Handling – Minimizes product damage compared to traditional chute or pusher sorters.
Scalability – Modular design supports expansion for growing sorting demands.
货号 :
SQ-X4-27订单（最小起订量） :
1支付 :
50% deposit，50% balance against BOL产品产地 :
China颜色 :
customized装运港口 :
Shanghai交货时间 :
30重量 :
800Performance parameter table
| Sorting efficiency | 3000~5000 PPH |
| Sorting error rate | ≤1% |
| Conveyor speed | 2.0~2.5m/s（adjustable） |
| Max processing size | 1200mm（L）*1000mm（W）*800mm（H） |
| Min processing size | 200mm（L）*200mm（W）*10mm（H） |
| Rated load capacity | ≤50 KG/m2 |
| Swivel angle | 45°~90°(both side) |
| Turning time | 90°Turning time ≤150ms |
| Noise | ≤72dB(A) |
| Power | ≤2.85KW |
| Equipment service life | ≥50000h |

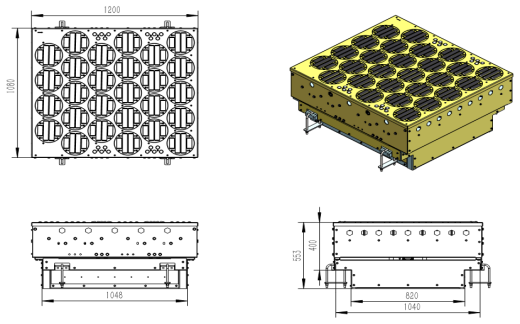

Appearance & parameters
